Ship Launching Methods Process Safety 2.0m Ship Launching Marine Roller Inflatable Balloon
Description
The ship launching balloon is an innovative and efficient method used for launching ships into the water. This technology replaces the traditional methods of using slipways and dry docks, making ship launching quicker and more cost-effective.

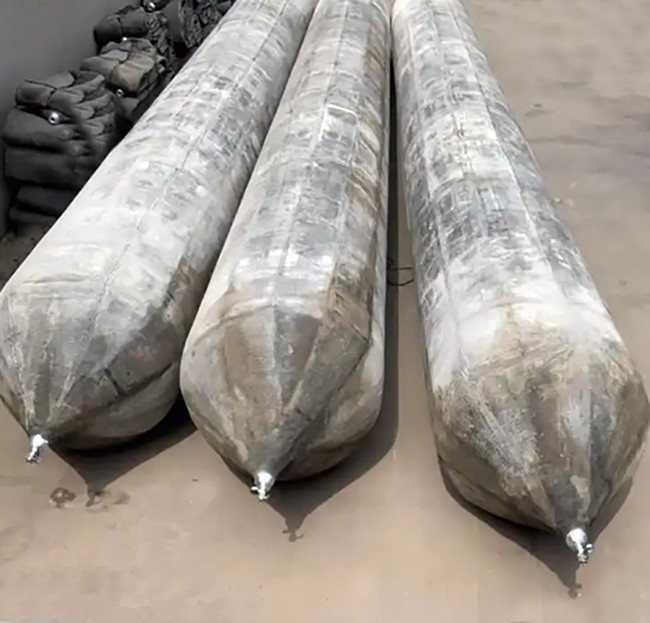

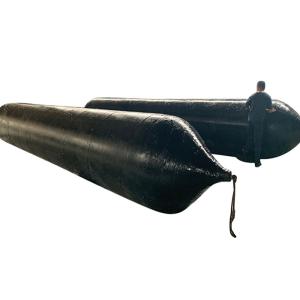

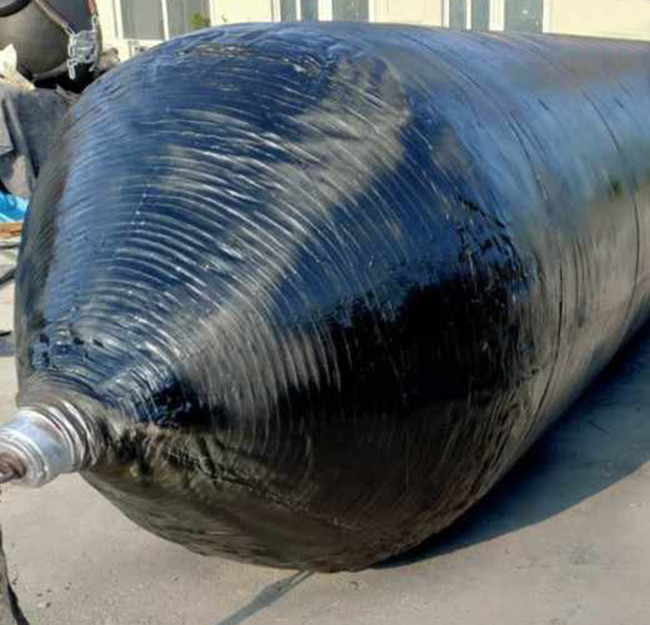

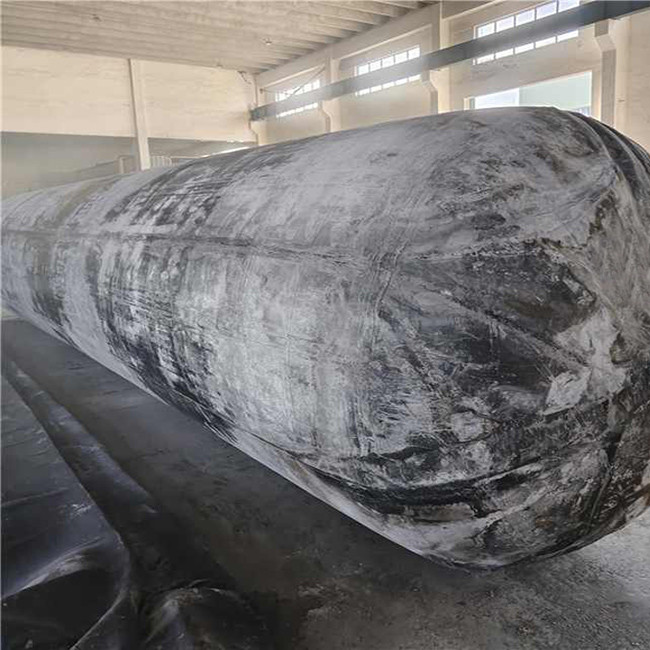

The ship launching balloon consists of a large inflatable structure that is placed under the ship. It is then inflated with air, lifting the ship off its supports and allowing it to float on the water. This process can be achieved in a matter of hours, compared to the weeks or even months required by traditional methods. The ship launching balloon offers several advantages. Firstly, it eliminates the need for expensive infrastructure such as slipways and dry docks, reducing the overall construction costs. Additionally, it allows for the launching of ships in remote areas or locations where building permanent infrastructure is not feasible.
Furthermore, the ship launching balloon is a safer method as it reduces the risks associated with traditional ship launching techniques. It provides a controlled and stable environment for launching, minimizing the potential for accidents or damage to the ship. In conclusion, the ship launching balloon is a remarkable technology that revolutionizes the shipbuilding industry. Its efficiency, cost-effectiveness, and safety make it an ideal solution for ship launching in various circumstances.
Specifications
| Place of Origin | China |
| Brand Name | Hongruntong Marine |
| Model Number | HM-SLB1.2*15M |
| Product Name | Boat Ship Launching Balloon, Marine Inflatable Balloons |
| Material | Sturdy Natrual Rubber |
| Warranty | 3 Years |
| Appearance | Smooth Rubber |
| Quality Certification | ISO14409:2011 |
| Standard | ABS, BV, DNV, LR, SGS |
| Shape | Cylindrical |
| Color | Black |
| Diameter | 500-4500 mm |
| Length | 3000-28000 mm |
| Thickness | 5-13 layers |
| Capacity | 20-500 tons |
| Application | Ship Launching/Docking/Lifting |
| Diameter | Working Pressure | Working Height | Bearing Capacity |
| KN/m | Ton/m |
| D=1.0m | 0.14Mpa | 0.6m | 87.96 | 8.98 |
| 0.5m | 109.96 | 11.22 |
| 0.4m | 131.95 | 13.46 |
| D=1.2m | 0.12Mpa | 0.7m | 94.25 | 9.62 |
| 0.6m | 113.10 | 11.54 |
| 0.5m | 131.95 | 13.46 |
| 0.4m | 150.80 | 15.39 |
| D=1.5m | 0.10Mpa | 0.9m | 94.25 | 9.62 |
| 0.8m | 109.96 | 11.22 |
| 0.7m | 125.66 | 12.82 |
| 0.6m | 141.37 | 14.43 |
| 0.5m | 157.08 | 16.03 |
| D=1.8m | 0.09Mpa | 1.1m | 98.96 | 10.10 |
| 1.0m | 113.10 | 11.54 |
| 0.9m | 127.33 | 12.98 |
| 0.8m | 141.37 | 14.43 |
| 0.7m | 155.51 | 15.87 |
| 0.6m | 169.65 | 17.31 |
| D=2.0m | 0.08Mpa | 1.2m | 100.53 | 10.26 |
| 1.1m | 113.10 | 11.54 |
| 1.0m | 125.66 | 12.82 |
| 0.9m | 138.23 | 14.11 |
| 0.8m | 150.80 | 15.39 |
| 0.7m | 163.36 | 16.67 |
| 0.6m | 175.93 | 17.95 |
| * Other size can be produced follow client's requirements. |
Features
High buoyancy
Ship launching balloons are designed to have a high level of buoyancy, allowing them to easily lift and support the weight of a large ship during the launching process. This ensures that the ship remains afloat and avoids any potential damage or accidents during the launch.
Strong and durable construction
Ship launching balloons are typically made from materials such as reinforced fabric or synthetic rubber, which provide strength and durability. This allows them to withstand the pressures and forces involved in the ship launching process without rupturing or deflating.
Inflation system
Ship launching balloons often come with an inflation system that allows for easy and quick inflation. This system can be manual or automated, depending on the specific design. It ensures that the balloon is properly inflated before the ship is launched, providing the necessary buoyancy and support.
Safety features
Ship launching balloons are equipped with various safety features to ensure a smooth and secure launching process. These may include built-in pressure release valves to prevent overinflation, reinforced attachment points for secure connection to the ship, and integrated monitoring systems to check for any potential leaks or issues during the launch.
Applications

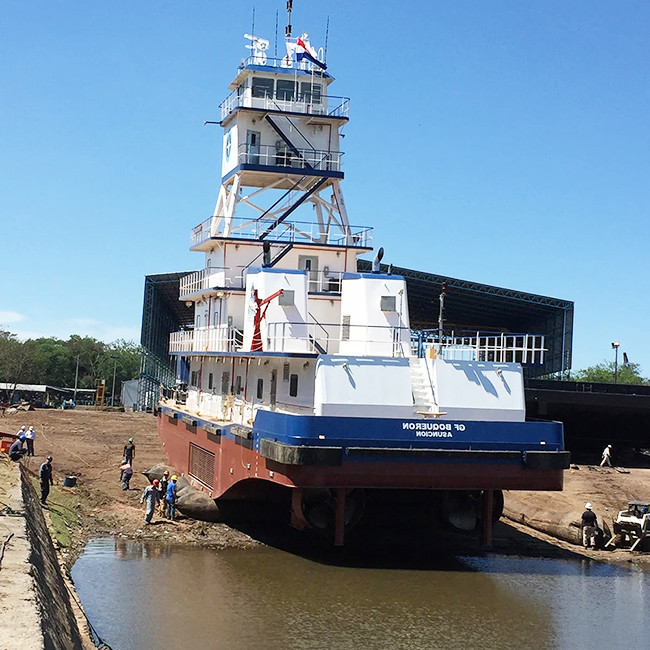

● Ship launching
● Offshore oil and gas exploration
● Coastal infrastructure construction
● Marine salvage operations
● Dredging projects
● Oceanographic research and surveys
● Floating bridge or platform construction
● Deep sea drilling operations
Advantages
High-Quality Manufacturing
We specialize in producing ship launching balloons, ensuring that each product is made with the highest quality materials and manufacturing processes.
Customization Options
Our factory offers a range of customization options for ship launching balloons, allowing customers to tailor the product to their specific needs and requirements.
Industry Expertise
With years of experience in the ship launching industry, our factory has developed a deep understanding of customer needs and industry standards. We continuously strive to innovate and improve our products to meet the evolving demands of the market.
Timely Delivery
We prioritize efficiency and timely delivery of our ship launching balloons. Our streamlined production process and strong logistics network enable us to meet customer deadlines and ensure smooth operations for ship launching projects.
